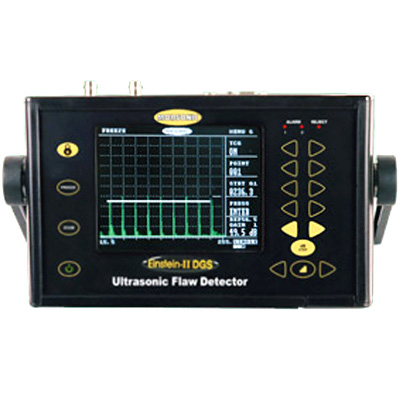

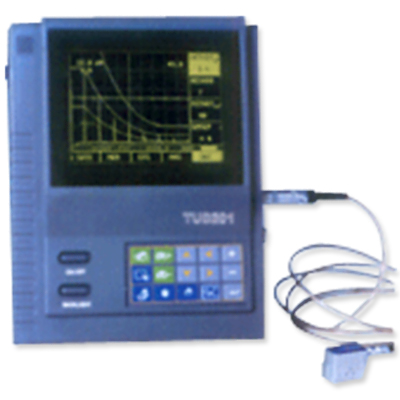

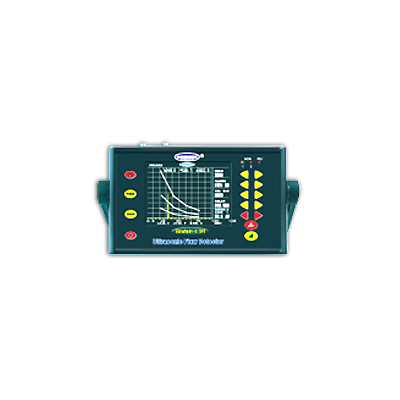

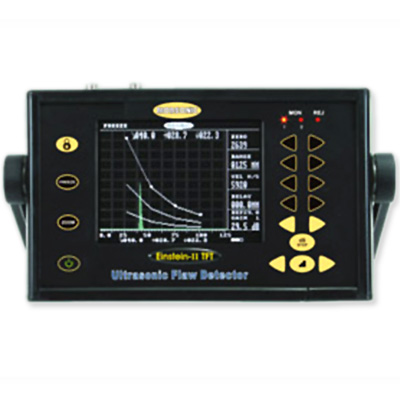

Product Profile of Ultrasonic Flaw Detectors For Field Operation
Vibronics Pvt. Ltd. manufactures Ultrasonic Flaw Detectors for Field Operation. Vibronics Pvt. Ltd. manufactures and exports Ultrasonic Cleaning Machine, Ultrasonic Cleaning Solution, Ultrasonic Cleaning Equipment, Flaw Detectors, Ultrasonic Processors, and Ultrasonic Cleaning Systems etc. The Ultrasonic Flaw Detectors for Field Operation provides precise quantitative evaluations with the simplest of controls that anyone can handle. The Ultrasonic Flaw Detectors for Field Operation are powered by rechargeable batteries housed inside the main units. A plug in battery charger permits the battery to be charges without removal from the main unit.
The technical features of Ultrasonic Flaw Detectors for Field Operation are as follows:
Frequency range: 0.5 MHz to 12 MHz
Vertical Linearity: + 2%
Gain: 140 dB
Gain control: 80 dB in Steps of 2 dB + 6 dB stepless
Depth range: Upto 5mtrs in steel
Delay: 3mtrs of steel
Ranges provided: 1,5,10,50,100cms with a multiplying factor of 5
Time base linearity: Better than 1%
PRF: Variable from 1 KHz to 125 Hz interlinked with range
Display: 70 X 55 mm
Operating temperature: 40C to 60C
