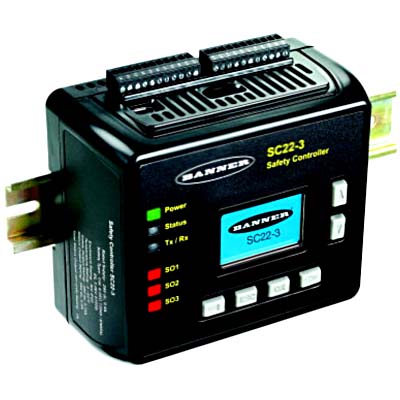

Product Specification of Totally Configurable Safety Controller

• Current: Sourcing current:30 mA minimum continuous (3V dc max. drop)
• EMC standards: Meets or exceeds all EMC requirements in IEC 61131-2, IEC 61496-1 (Type 4), and IEC 62061 Annex E, Table E.1 (increased immunity levels)
• Power: 24V dc, ? 20%, 0.4 A (controller only), 5.9 A (all outputs ON @ full rated load)
• Rating: Environmental Rating: NEMA 1 (IEC IP20), for use inside NEMA 3 (IEC IP54) or better enclosure
• REACTION TIME: Response time (ON to OFF):10 milliseconds max. (with standard 6 milliseconds debounce; this can increase if debounce time increases. Refer to the configuration summary for actual response time.), Reaction time (OFF to ON):400 milliseconds max. (with manual reset option), Reaction time (OFF to ON):400 milliseconds max. plus input debounce time (auto reset).
• Resistance: Input lead resistance:300 ohms max. (150 ohms per lead)
• Shock: 15 g for 11 milliseconds, half sine, 18 shocks total (per IEC 61131-2)
• Vibration: 3.5 mm occasional / 1.75 mm continuous @ 5Hz to 9 Hz, 1.0 g occasional and 0.5 g continuous @ 9 to 150 Hz: (per IEC 61131-2) and 0.35 mm single amplitude / 0.70 mm peak-to-peak @ 10 to 55 Hz (per IEC 61496-1), all @ 10 sweep cycles per axis
• Terminals: Screw terminals: Wire sizes:16, 18, 20, 22 or 24 AWG (0.20 ? 1.31 mm2), Wire strip length:5.00 mm, Tightening torque:0.23 Nm (2 in. lbs) nominal, Tightening torque:0.34 Nm (3.0 in. lbs) maximum; Clamp terminals: Wire size:16, 18, 20, 22, or 24 AWG (0.20 ? 1.31 mm2), Wire strip length:9.00 mm.
