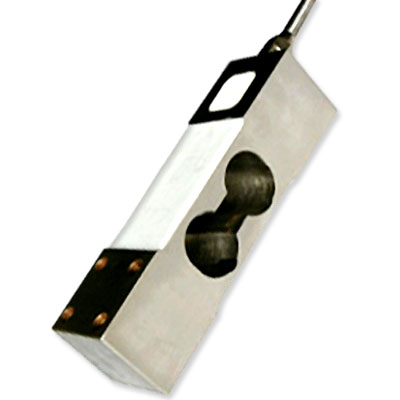

Strain Gauge Based Single Point Miniature Load Cell

Product Category : Transducers, Strain Gauge

Follow Product

Supplier : Sunshine Sensors

Key Features of Strain Gauge Based Single Point Miniature Load Cell

Single Point Capability with minimum Off-centre error
Low profile Design
Capacity as low 300 gmf Full Scale
Moisture Proof Sealing
Inbuilt Protecting Bracket
Precision Jewelry Scales
Small Bagging Machine
Thread Tension Measurements

Enquire now

Product Profile of Strain Gauge Based Single Point Miniature Load Cell

Sunshine Sensors supplies Strain Gauge Based Single Point Miniature Load Cell. Sunshine Sensors is a sister concern of Sunshine Group of Industries, which is an ISO 9001:2000 recognized company. Sunshine Sensors offers wide ranges of single point platform load cell, single point table top load cell, single point miniature load cell, s-type beam load cell, single ended shear beam load cell, double ended shear beam load cell, compression load cell etc. Strain Gauge Based Single Point Miniature Load Cell is ideal for low eccentric load sensitivity and provided with mechanical over load & under load protection mechanism.

Key Features of Strain Gauge Based Single Point Miniature Load Cell

Single Point Capability with minimum Off-centre error
Low profile Design
Capacity as low 300 gmf Full Scale
Moisture Proof Sealing
Inbuilt Protecting Bracket
Precision Jewelry Scales
Small Bagging Machine
Thread Tension Measurements

Product Specification of Strain Gauge Based Single Point Miniature Load Cell

Creep: <± 0.03%Fso (30 Minutes)
Deflection: <0.5 mm at FSO
Eccentric Load Effect: <0.02% of FSO at 1/3 rated load placed theedge of the specified size platter
Excitation Voltage: 10 VDC - Maximum 15 VDC
Hysteresis: <± 0.02%FSO
Input Resistance: 420 ± 15
Insulation Resistance: >1000 Mega Ohms at 50 VDC
Nominal Output: 1.6 mV/ V
Non-Repeatability: <± 0.01%FSO
Output Resistance: 350 ± 3
Platter Size: 120 Dia.
Safety Overload: 150% of Rated Capacity
Standard Capacity: 300, 400, 500, 750 Kgf.<br>1, 1.5, 2 Tf.
Temperature: 0 - 60°c
Temperature Effect: On Output: <0.0015%FSO/ °C<br>On Zero: <0.0020%FSO/ °C
Ultimate Overload: 250% of Rated Capacity
Zero Balance: ± 5.0%FSO
