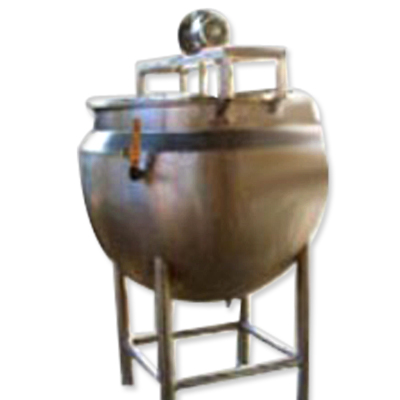

Product Profile of Steam Jacketed Kettle with Bottom Discharge Option
Steam Jacketed Kettle with Bottom Discharge Option comes with 100 liter, 225 liter, 450 liter capacity ranges. The Steam Jacketed Kettle is made from high grade raw materials. Geeta Food Engineering is the manufacturer of Steam Jacketed Kettle with Bottom Discharge Option.
Geeta Food Engineering also manufactures various types of fruit & vegetable washer, cutting machine, pouch sealer, bottle washer, bottle sterilizer etc. This Steam Jacketed Kettle includes inner pan, outer jacket and stand. Steam Jacketed Kettle is provided with all fittings like Steam Valve, Pressure gauge, Safety valve, drain valve, air vent etc.
Steam Jacketed Kettle with Bottom Discharge Option has the following features:
Available in Capacity 100 liter, 225 liter, 450 liter.
All unit including inner pan, outer jacket and stand is made in S S 304.

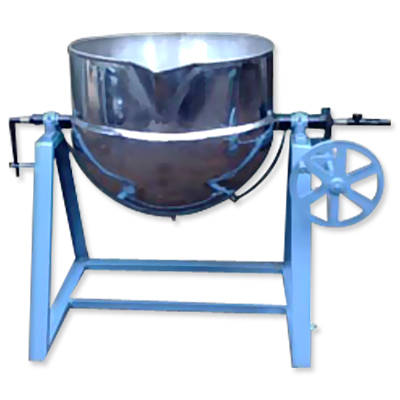

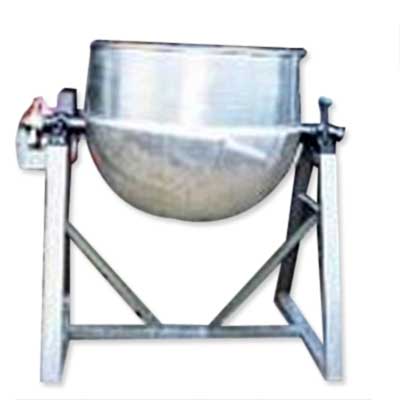

Available tilting type as well as stationary type kettle.

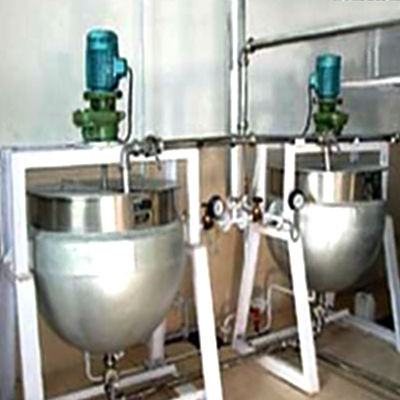

Stationary kettle is provided with agitator of suitable HP depending on capacity.
Steam Jacketed Kettle is provided with all fittings like Steam Valve, Pressure gauage, Safety valve, drain valve, air vent etc.
The stationary kettle is with bottom discharge with suitable size ball valve.
Unit is hydraulically tested at 10 Kg pressure.
Fine polished job.
