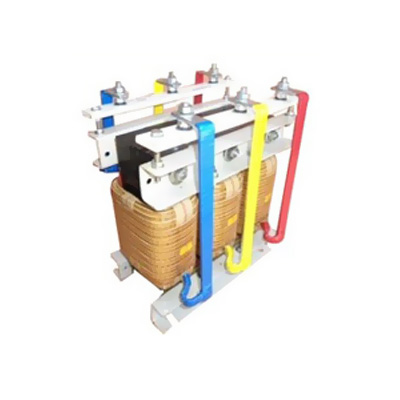

Product Profile of Single/ Three Phase Wall Mountable Line Reactor
Single/ Three Phase Wall Mountable Line Reactor is an ideal solution for variable speed drive and to variety of problems. The Line Reactor acts as a current limiting device as well filters noises and harmonics generated from the load. The Line Reactor reduces temperature and noise and ensures attenuation of input harmonics. Single/ Three Phase Wall Mountable Line Reactor is available in 1.5%, 3%, 5% impedance rating.
Specifications of Single/ Three Phase Wall Mountable Line Reactor:
Available in both single and three phase
Available in 1.5%, 3%, 5% impedance
Standard ratings: 1HP to 500 HP
600 Volt Class, 50/ 60 Hz [for 200-600 volts]
Insulation Class F [155 degree C]
2500V AC dielectric strength
Key Features of Single/ Three Phase Wall Mountable Line Reactor
- Improved stability for motor drive system
- Improves motor life
- Attenuation of input harmonics
- Reduced temperature and noise
- Almost nullifies the nuisances of inverter tripping
- Wall Mountable also available for small rating
