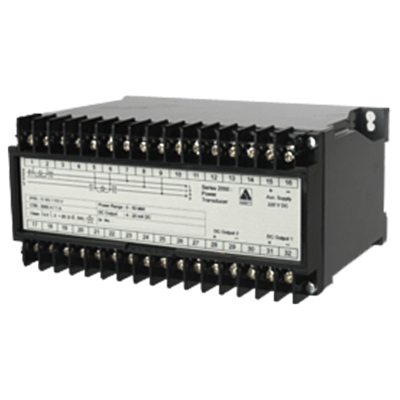

Product Profile of Single/ Three Phase Power Transducer
Single/ Three Phase Power Transducer is used for accurate measurement of electrical parameters, remote monitoring and automation applications. The Power Transducer is suitable for sinusoidal & true RMS inputs, with high accuracy [0.2%] separate AC or DC auxiliary supply or built in [self powered]. The Power Transducer is suitable for single phase as well as 3 phase balanced or unbalanced load. The Single/ Three Phase Power Transducer enables precision measurement even for distorted wave.
Kusam-Meco manufactures Single/ Three Phase Power Transducer. Kusam-Meco offers a wide range of advanced control & instrumentation products that include Digital Multimeter, Digital Clamp Meter, Data Logger, Resistivity Tester, Digital Elcb Tester, Analog Insulation Resistance Tester, Earth Resistance Tester, Insulation Tester, High Voltage Detector, Stroboscope etc. Kusam-Meco is an ISO 9001:2008 certified company. The range of products finds application in government laboratories, different segments of the industry, engineering colleges and research laboratories.
Key Features of Single/ Three Phase Power Transducer
- The types of Transducer available are AC Current Transducer, AC Voltage Transducer, Watt or VAR Transducer, combined Watt & VAR Transducer, Watt Hour or VAR Hour Transducer, combined Watt & Watt Hour or VAR & VAR Hour Transducer and Power Factor Transducers
- All the transducers have high dielectric strength of 2.6 KV AC / Min, between Input/ Output/ power case
- High impulse & surge protection
- ABS plastic case & DIN Rail or Wall mounting
- Confirming to IEC-688
- High Accuracy 0.2% RO at 23 C &plusmin; 5 C. On request 0.5% available
- Auxiliary Power 110/220V AC; Self Powered / DC 240 / 110 / 125 / 85 ~ 265V available
- High Dielectric Strength: 2.6KVAC / Min, Between Input / Output / Power Case
- ABS Plastic Self - Extinguishing Case, DIN Rail or Wall Mounting
- High Impulse to withstand voltage
