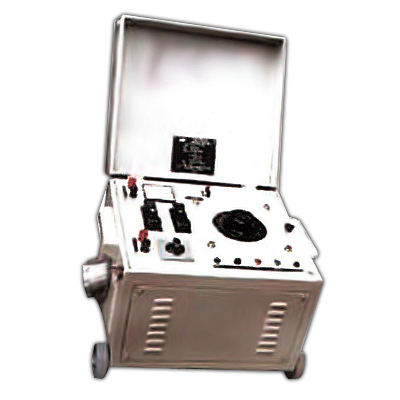

Product Profile of Primary Current Injection Sets
R.R. Enterprises manufactures Primary Current Injection Sets. The Primary Current Injection Sets is designed to operate on single phase 230/240 volts AC 50 HZ to develop smooth & continuous test current as for loading, calibrating, and testing of CTs, Bimetal Relays, Protection Relays etc. The test set gives high current output at low cost and with inherent safety .The primary current injection testing checks all parts of the protection system by injecting current down the cable/bus bars.
R.R. Enterprises supplies various types of High Voltage Test equipments & Measuring instruments. The application of the primary current injection sets is to ascertain the current carrying capacity of any Conductor, insulator, connector or calibration of CTs / bi-metallic relays etc.
Technical Specifications of Primary Current Injection Sets are:
Input: 230/240 Single phase AC 50 HZ;
Output current: 1000/2000/4000 Amps or as specified
Burden [cap]: As specified
Duty cycles: 10 min on & 10 min off
Cooling: Natural Air Cooling
Instruments: AC Voltmeter to measure input voltage AC Ammeter C T operated having basic range of 5A/1A associated with multi-ratio current transformer with suitable ranges. Time Interval meter, Digital range 0-999 Milliseconds
Control: Motorized control to vary output current
