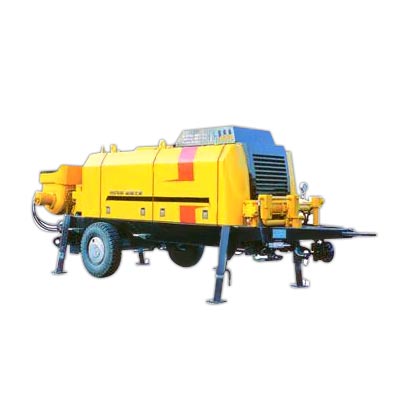

Product Profile of Multi Purpose Surface Concrete Pump
Surface International offers Multi Purpose Surface Concrete Pump. Surface International offers a wide range of shot blasting/shot peening machines for engineering. The Multi Purpose Surface Concrete Pump is used for performing plastering, shortcreting, grouting, concrete placing, and many more in the construction industry.
Specifications of the Multi Purpose Surface Concrete Pump are:
Model: S15
Maximum theoretical output: 15 cubic meters per hour
Maximum Concrete Pressure: 95 bar
Strokes / Minute: 21
Pumping Displacement, Diameter: 114 x 826 mm
Piston Displacement 2 Cylinders: 28 litres
Capacity of charging Hopper: 400 litres
Maximum Horizontal Placing distance: 150 meters
Maximum Vertical placing distance: 45 meters.
Engine [Diesel/Electric]: 60 HP
Driving Speed: 1450/2300 rpm
Dead weight includes Oil & Fuel: 2500 kg
Diameter of Concrete delivery Pipeline: 75-100mm
Maximum size of Aggregate: 20mm
