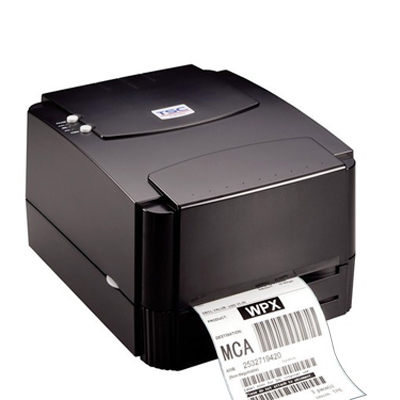

Product Specification of Industrial Purpose Thermal Transfer Barcode Label Printer

• Emulation: Autoswitch Zebra&#174 ZPL&#174, Datamax&#174 DMI, BASIC Interpreter (languages)
• Fonts: 1 Scalable, 8 Bitmap resident
• Interface: RS232C Standard USB Standard, Parallel Optional Internal (1284 compliant), Ethernet Optional Internal (10/100 base T), Wireless LAN Optional Internal (802.11b)
• Label length: 0.50 in(min), 12.7 mm(min)

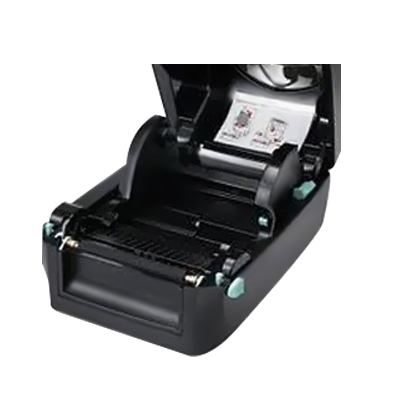

• Mechanism: Metal Hi-Lift&#8482 mechanism with plastic case
• Media sensing: Label gap, notch or reflective
• Media Sensor: Moveable media sensor_ Standard
• Media Thickness: 0.0025 - 0.01 inches, 0.0635 - 0.254 mm
• Media Type: Roll or fanfold media; continuous or perforated; die-cut labels, tags & tickets
• Media Width: 0.50 - 4.65 inches(min-max), 12.5 - 118 mm(min-max)
• Memory: RAM 16 Mb (1 Mb for user data) / Flash RAM 4 Mb (1 Mb for user data)
• Print length: 32 inches(max), 812mm(max)
• Print Speed: 4 inches/sec in TT and 6 inches / sec in direct thermal mode
• Print Width: 4.1 inches(max), 104 mm(max)
• Resolution: 203 dpi / 8 dots/mm
• Ribbon Size: 360 metre (1180 feet), 74 mm (3 inch) Outside Diameter, 25 mm (1 inch) Core
• Size: 224x288x270 mm (WxDxH)
• Technology: Thermal Transfer and direct thermal printing featuring ARCP&#8482 ribbon system.
• User Interface: 4 buttons + 4 LEDs + VuePrint&#8482 Menu
• Weight: 4.5kg
