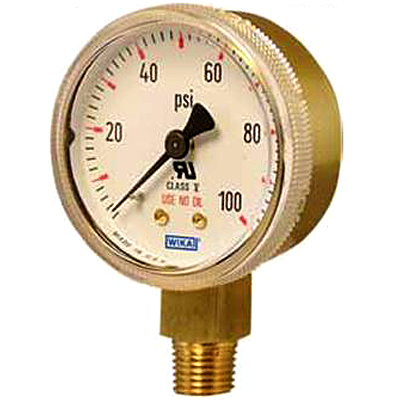

Pramod Engineering supplies High Pressure Gas Gauges. Pramod Engineering manufactures a range of Compound Gauges, Vacuum Gauges, Pressure Gauges, etc. The High Pressure Gas Gauges are applicable in high pressure gas systems, cylinders charged with any oxygen, Acetylene, Nitrogen, and nitrous oxide gases.

Specifications of High Pressure Gas Gauges are:
Application High pressure gas systems, cylinders charged with any oxygen, Acetylene, Nitrogen, nytrous oxide gases Dial size 2" Scale range 0-30 to 0-4000psi Accuracy / Class as per Indian Standards ±2% of FSD Mounting Direct bottom Connection ¼" NPT Case Drawn Aluminium
Powder coated in standard colour shade for specific gases Pressure element Bourdon tube Wetted parts Brass or 316 Stainless Steel Movement Brass or 316 Stainless Steel Dial Aluminum with White background and black markings & numbering are printed along with "OXYGEN", "ACETYLENE, "NITROGEN" as per standard Pointer Non adjustable Window Molded Acrylic Features Aluminum solid baffle wall at front part of case between bourdon tube and dial and aluminum blow-out back provides safety for gauge viewer from rupture Optional -
