Product Profile of Clear Transparent Acrylic Rectangular Ac & Dc Panel Meters

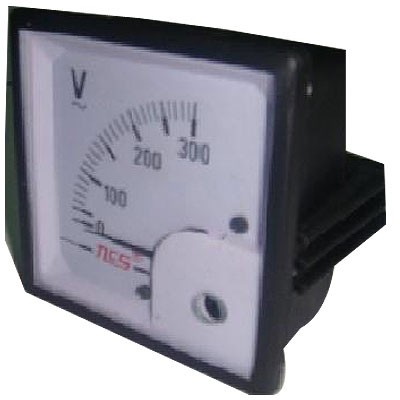

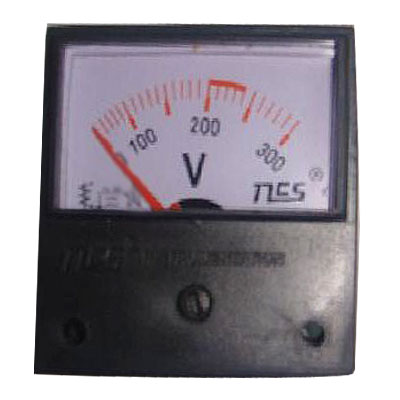

Meco offers Clear Transparent Acrylic Rectangular AC & DC Panel Meters with the model numbers MR60, MR65, MR100, MR120, CR60, CR65, CR100, CR120. Meco is an ISO 9001:2000 certified company. Meco Clear Transparent Acrylic Rectangular AC & DC Panel Meters is a Clear Transparent Acrylic Rectangular Type Moving Coil Meter.
The salient features of the Clear Transparent Acrylic Rectangular AC & DC Panel Meters are as follows:
Size: 60x60mm, 81x81mm, 100x80mm, 120x100mm
Movement Type: Moving Coil with Central Magnetic Core, Spring Mounted Jewel Bearing Suspension with Rectifier Circuit for AC
Range
DC Range
Current [?A] : 50?A to 750?A
Current [mA] : 1mA to 750mA
Current [A ] : 1A to 50A, 0-5A to 0-5000 A/75mV
Voltage [mV] : 50mV to 750mV
Voltage [V] : 1V to 1000V
AC Range
Current [A] : 1A or 5A
Voltage [V] : 10V to 1000V
Accuracy
?1% of Full Scale for MR120
?1.5% of Full Scale for MR100, CR100, CR120
?2.5% of Full Scale for MR60, MR65, CR60, CR65
Standards:
IS-1248, IEC-51, IEC-1010, BS-89, DIN 43700-43718
