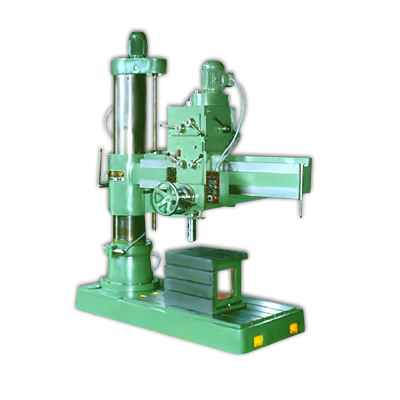

Product Profile of 25 Mm Universal Radial Drill Machine
Paras Machine Tools supplies 25 mm Universal Radial Drill Machine. Paras Machine Tools offers various types of universal radial drilling machines and pillar type drilling machines. 25 mm Universal Radial Drill Machine is available with the brand name "Premier".25 mm Universal Radial Drill Machine is applied for drilling, tapping, and lapping, boring, operations. 25 mm Universal Radial Drill Machine is available with 90 to 2300 RPM speed ranges.
Technical Specifications of 25 mm Universal Radial Drill Machine is:
Drilling Capacity [in Mild Steel]:25 mm
Pillar Diameter:125 mm
Spindle nose to table distance:410 mm
Spindle nose to base distance:660 mm
Distance from Spindle centre to Pillar face: 670 mm
Taper in Spindle:MT.3
Number of Speed:8 Speed
Range of Speed:90 to 2300 RPM
Table Size:250 x 200 x 200 mm
Base Size [Machined Area]:500 X 600 mm
Overall Base Size:925 X 600 mm
Spindle Travel:220 mm
Pillar Length;1220 mm
Overall height with pulley Guard :1425 mm
V. Belt Section :B. 43 inch & A. 23 inch
Weight [Approx] :500 Kgs
Motor 1440 RPM 3 Phase 440 Volts:1 HP & 0.5 HP
